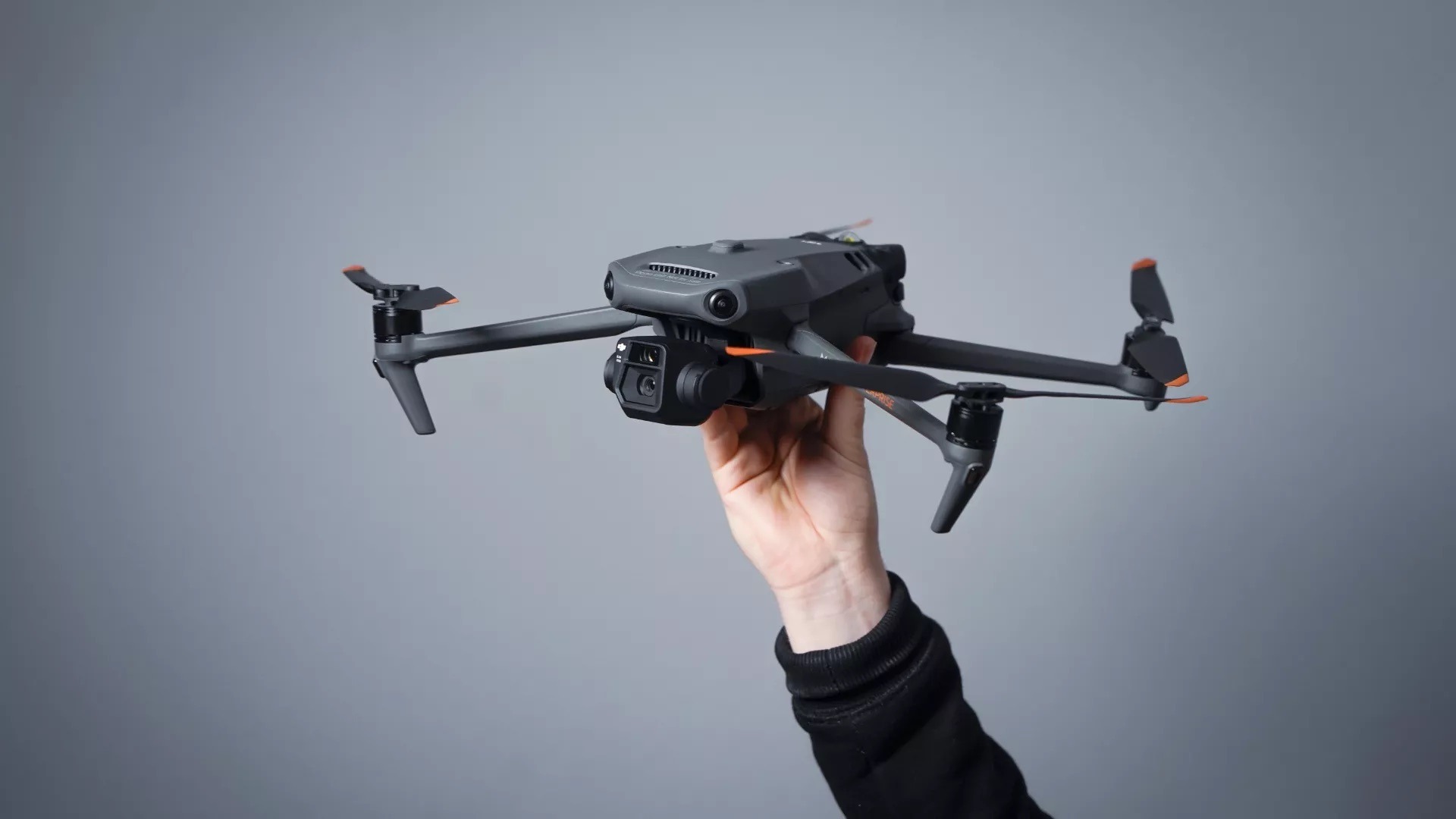

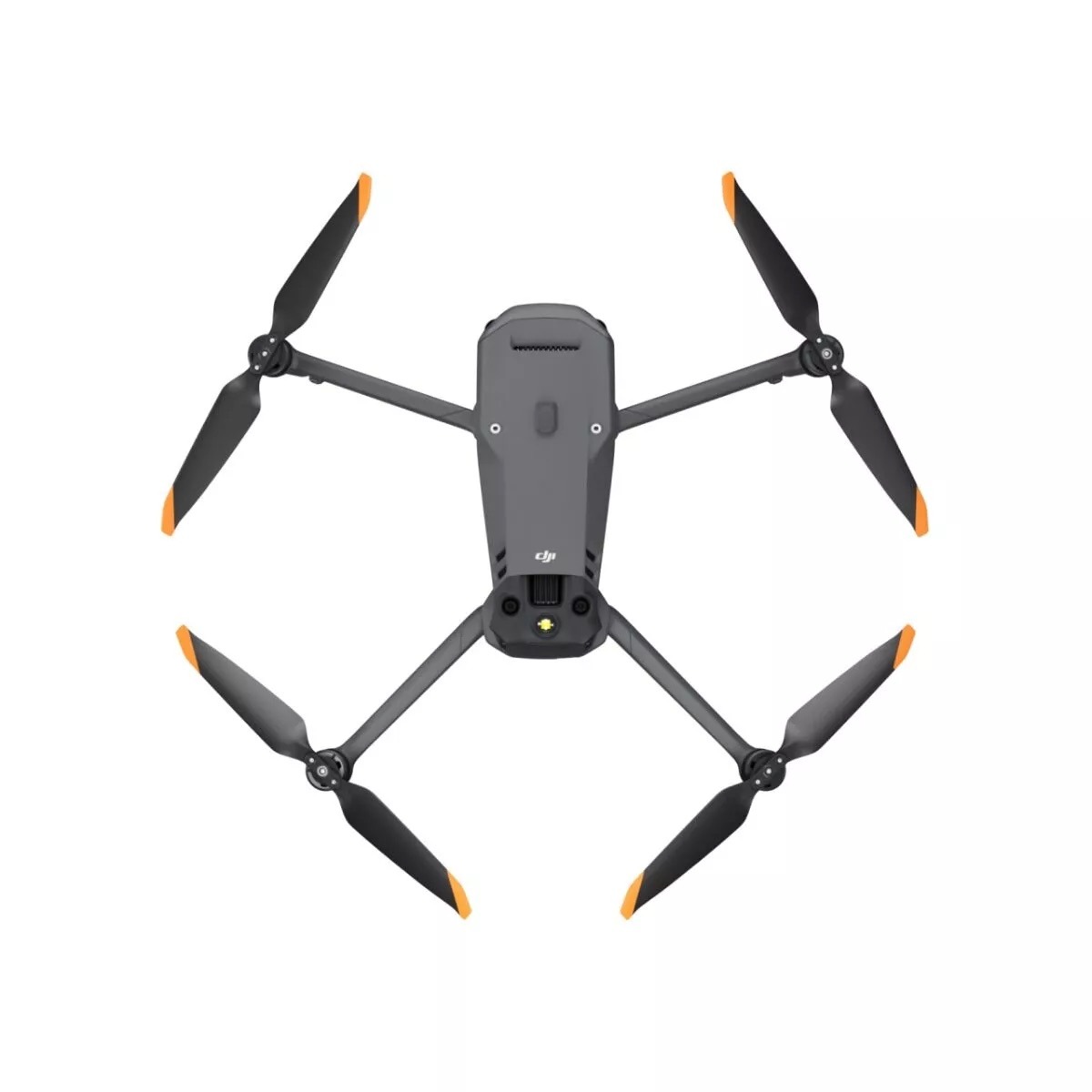

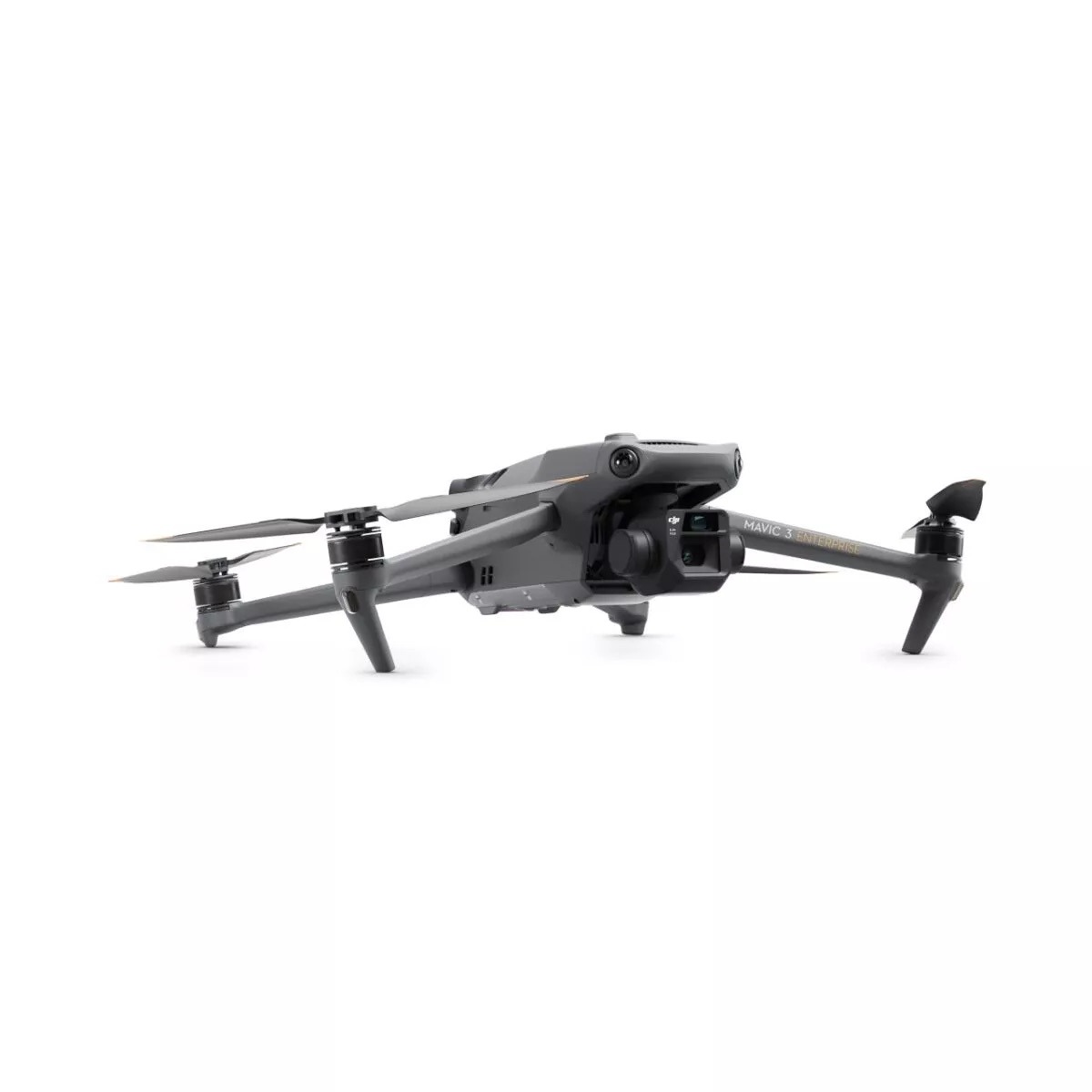

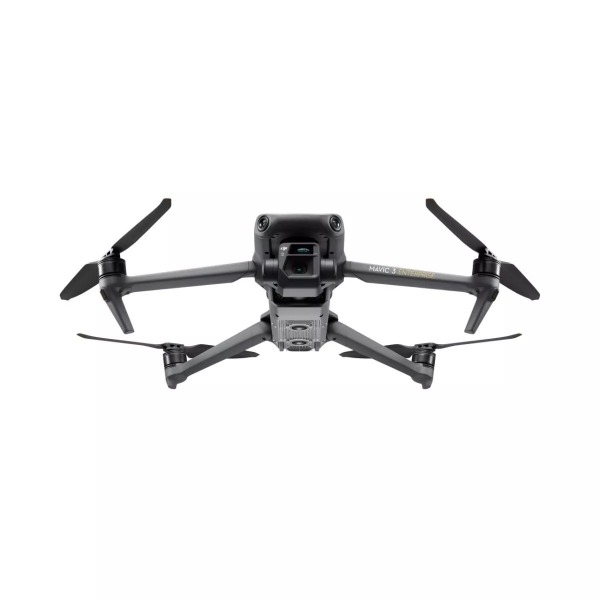

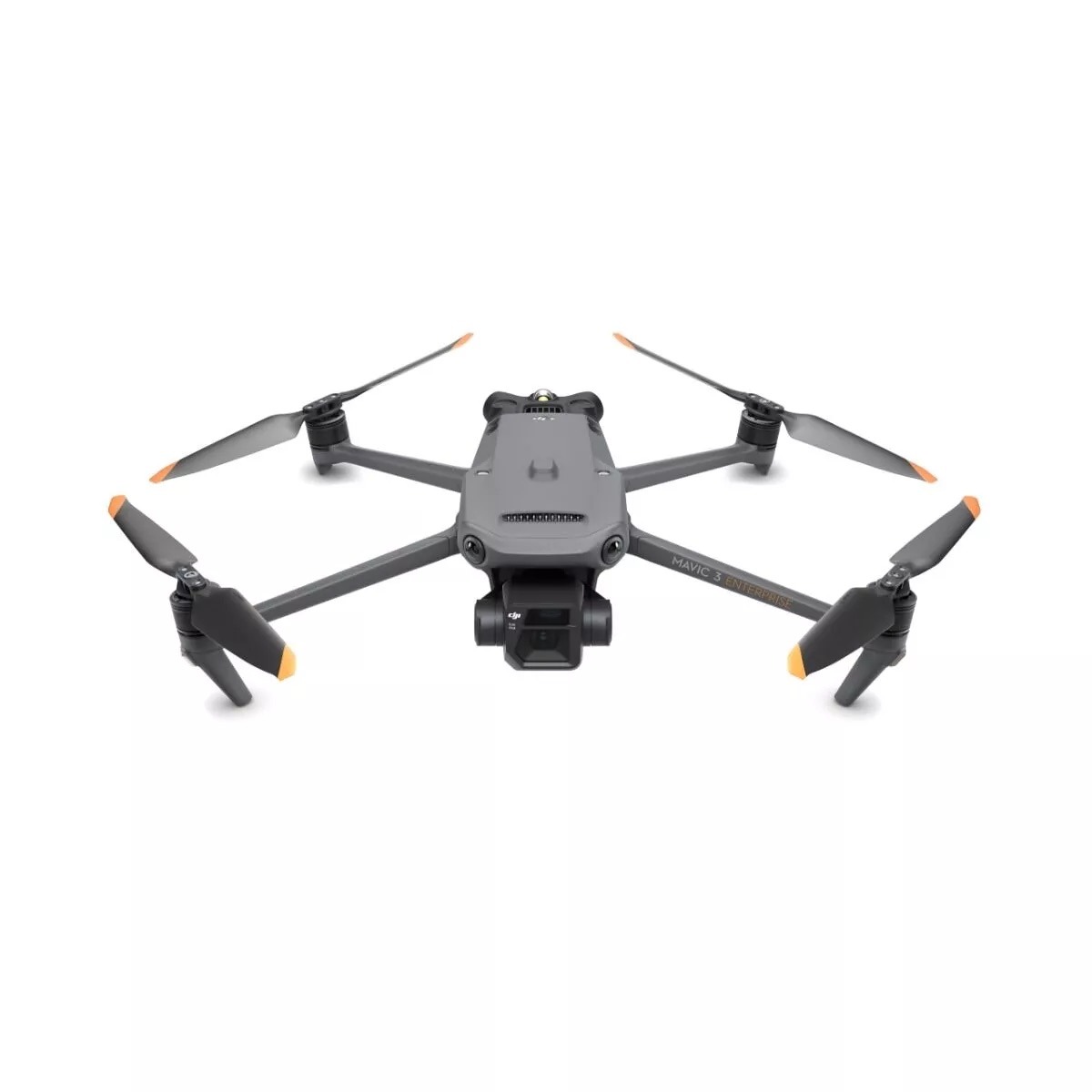

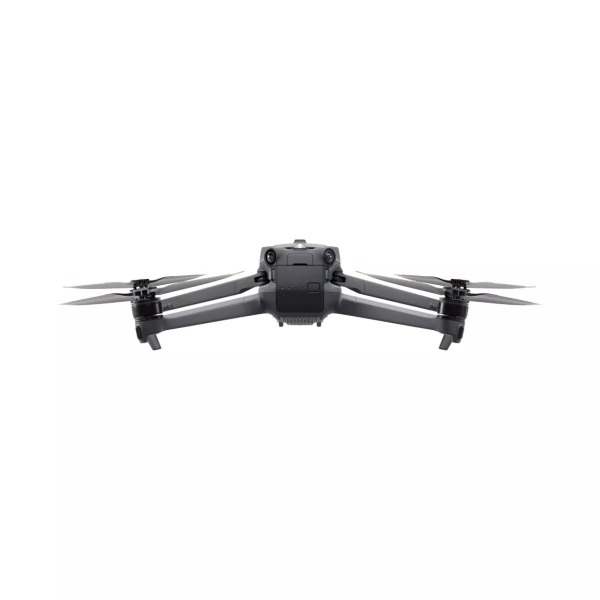

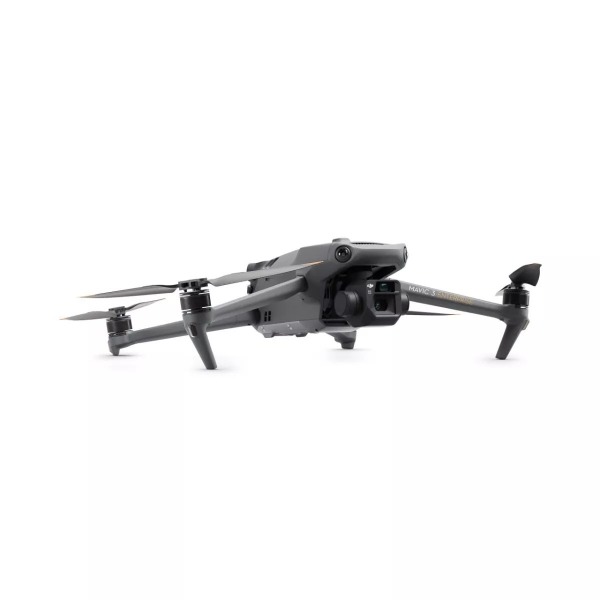

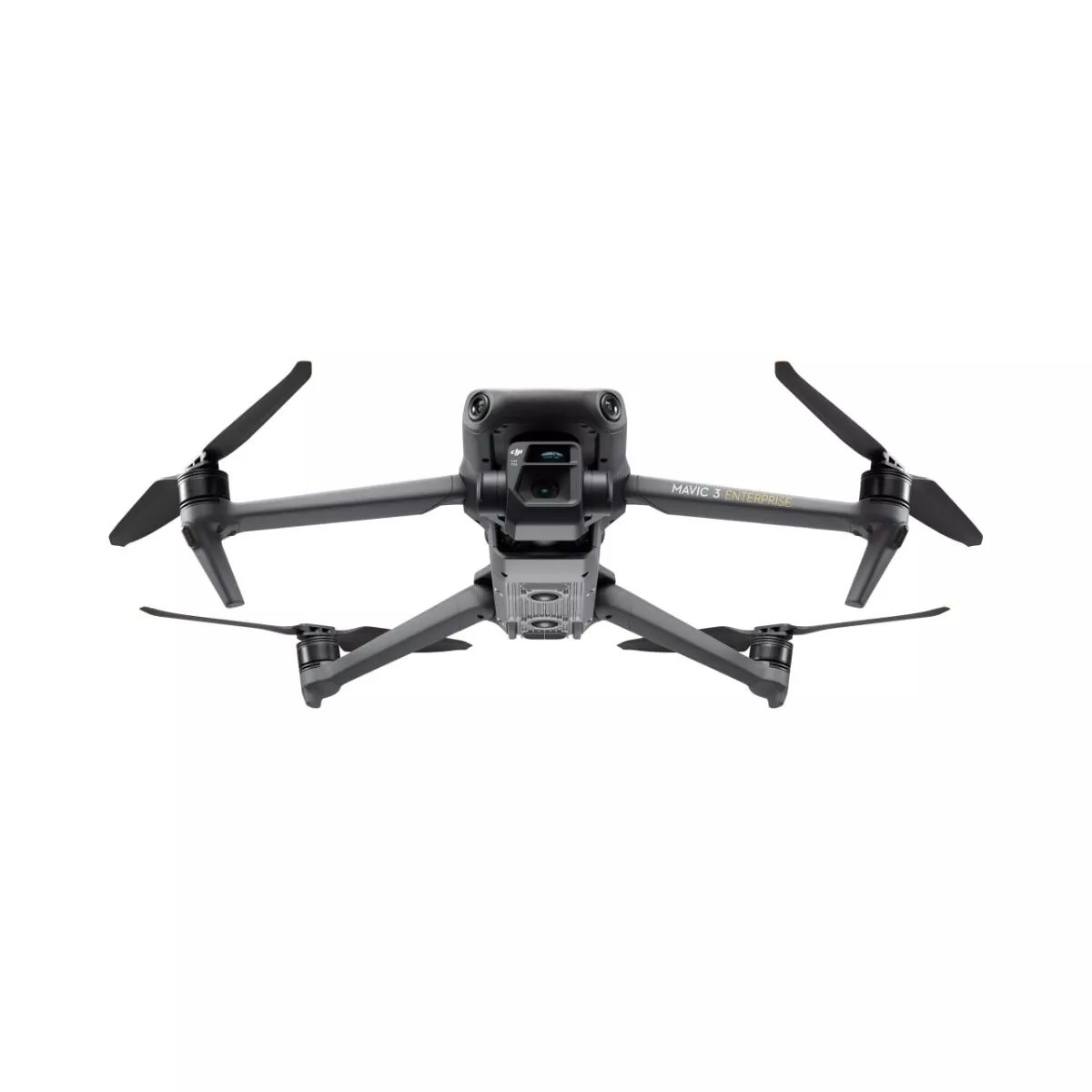

DJI MAVIC 3T ENTERPRISE SU TERMO KAMERA
„Mavic 3 Enterprise series” – du modeliai su begale funkcijų. „Mavic 3 Enterprise series” dronai iš naujo apibrėžia mažų komercinių dronų pramonės standartus. Šis modelis tinkamas tiek pradedantiesiems, tiek ir patyrusiems pilotams. „Mavit 3T“ galima naudoti gaisrų gesinimo, paieškos ir gelbėjimo, tikrinimo ir naktinių operacijų reikmėms. Drono baterija dabar lengvai įkraunama, o su 45 minučių skrydžio trukme galėsite apžiūrėti iki 2 kvadratinių kilometrų plotą. Dėl iš visų pusių įdiegtų plataus kampo objektyvų, nuo šiol dar lengviau išvengsite kliūčių ar aklųjų zonų, todėl skrydžiai nuo dabar dar saugesni.
PRISTATYMO TERMINAS 7-14 D. Aircraft Weight (with propellers, without accessories)DJI Mavic 3E: 915 g DJI Mavic 3T: 920 g Max Takeoff Weight DJI Mavic 3E: 1,050 g DJI Mavic 3T: 1,050 g Dimensions Folded (without propellers): 221×96.3×90.3 mm (L×W×H) Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H) Diagonal Distance 380.1 mm Max Ascent Speed 6 m/s (Normal Mode) 8 m/s (Sport Mode) Max Descent Speed 6 m/s (Normal Mode) 6 m/s (Sport Mode) Max Flight Speed (at sea level, no wind) 15 m/s (Normal Mode) Forward: 21 m/s, Side: 20 m/s, Backward: 19 m/s (Sport Mode) Max Wind Speed Resistance 12 m/s Max Take-off Altitude Above Sea Level 6000 m (without payload) Max Flight Time (no wind) 45 mins Max Hover Time (no wind) 38 mins Max Flight Distance 32 km Max Tilt Angle 30° (Normal Mode) 35° (Sport Mode) Max Angular Velocity 200°/s GNSS GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled) Hovering Accuracy Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK) Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK) Operating Temperature Range -10° to 40° C (14° to 104° F) Internal Storage N/A Motor Model 2008 Propeller Model 9453F Propellers for Enterprise Beacon Built into the aircraft Wide Camera SensorDJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP Lens DJI Mavic 3E: FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8-f/11 Focus: 1 m to ∞ DJI Mavic 3T: FOV: 84° Format Equivalent: 24 mm Aperture: f/2.8 Focus: 1 m to ∞ ISO Range DJI Mavic 3E: 100-6400 DJI Mavic 3T: 100-25600 Shutter Speed DJI Mavic 3E: Electronic Shutter: 8-1/8000 s Mechanical Shutter: 8-1/2000 s DJI Mavic 3T: Electronic Shutter: 8-1/8000 s Max Image Size DJI Mavic 3E: 5280×3956 DJI Mavic 3T: 8000×6000 Still Photography Modes DJI Mavic 3E: Single: 20 MP Timed: 20 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s JPEG+RAW: 3/5/7/10/15/20/30/60 s Smart Low-light Shooting: 20 MP Panorama: 20 MP (raw image) DJI Mavic 3T: Single: 12 MP/48 MP Timed: 12 MP/48 MP JPEG: 2/3/5/7/10/15/20/30/60 s* Panorama: 12 MP (raw image); 100 MP (stitched image) Smart Low-light Shooting: 12 MP * Shooting 48MP photo does not support 2s interval Video Resolution H.264 4K: 3840×2160@30fps FHD: 1920×1080@30fps Bitrate DJI Mavic 3E: 4K: 130 Mbps FHD: 70 Mbps DJI Mavic 3T: 4K: 85 Mbps FHD: 30 Mbps Supported File Formats exFAT Photo Format DJI Mavic 3E: JPEG/DNG (RAW) DJI Mavic 3T: JPEG Video Format MP4 (MPEG-4 AVC/H.264) Tele Camera Sensor1/2-inch CMOS, Effective pixels: 12 MP Lens FOV: 15° Format Equivalent: 162 mm Aperture: f/4.4 Focus: 3 m to ∞ ISO Range DJI Mavic 3E: 100-6400 DJI Mavic 3T: 100-25600 Shutter Speed Electronic Shutter: 8-1/8000 s Max Image Size 4000×3000 Photo Format JPEG Video Format MP4 (MPEG-4 AVC/H.264) Still Photography Modes DJI Mavic 3E: Single: 12 MP Timed: 12 MP JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Low-light Shooting: 12 MP DJI Mavic 3T: Single: 12 MP Timed: 12 MP JPEG: 2/3/5/7/10/15/20/30/60 s Smart Low-light Shooting: 12 MP Video Resolution H.264 4K: 3840×2160@30fps FHD: 1920×1080@30fps Bitrate DJI Mavic 3E: 4K: 130 Mbps FHD: 70 Mbps DJI Mavic 3T: 4K: 85 Mbps FHD: 30 Mbps Digital Zoom 8x (56x hybrid zoom) Thermal Camera Thermal ImagerUncooled VOx Microbolometer Pixel Pitch 12 μm Frame Rate 30 Hz Lens DFOV: 61° Format Equivalent: 40 mm Aperture: f/1.0 Focus: 5 m to ∞ Sensitivity ≤50 mk@F1.1 Temperature Measurement Method Spot Meter, Area Measurement Temperature Measurement Range -20° to 150° C (-4° to 302° F, High Gain Mode) 0° to 500° C (32° to 932° F, Low Gain Mode) Palette White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 Photo Format JPEG (8-bit) R-JPEG (16-bit) Video Resolution 640×512@30fps Bitrate 6 Mbps Video Format MP4 (MPEG-4 AVC/H.264) Still Photography Modes DJI Mavic 3T: Single: 640×512 Timed: 640×512 JPEG: 2/3/5/7/10/15/20/30/60 s Digital Zoom 28x Infrared Wavelength 8-14 μm Infrared Temperature Measurement Accuracy ±2° C or ±2% (using the larger value) Gimbal Stabilization3-axis (tilt, roll, pan) Mechanical Range DJI Mavic 3E: Tilt: -135° to 100° Roll: -45° to 45° Pan: -27° to 27° DJI Mavic 3T: Tilt: -135° to 45° Roll: -45° to 45° Pan: -27° to 27° Controllable Range Tilt: -90° to 35° Pan: Not controllable Max Control Speed (tilt) 100°/s Angular Vibration Range ±0.007° Sensing TypeOmnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft. Forward Measurement Range: 0.5-20 m Detection Range: 0.5-200 m Effective Sensing Speed: Flight Speed ≤15 m/s FOV: Horizontal 90°, Vertical 103° Backward Measurement Range: 0.5-16 m Effective Sensing Speed: Flight Speed ≤12 m/s FOV: Horizontal 90°, Vertical 103° Lateral Measurement Range: 0.5-25 m Effective Sensing Speed: Flight Speed ≤15 m/s FOV: Horizontal 90°, Vertical 85° Upward Measurement Range: 0.2-10 m Effective Sensing Speed: Flight Speed ≤6 m/s FOV: Front and Back 100°, Left and Right 90° Downward Measurement Range: 0.3-18 m Effective Sensing Speed: Flight Speed ≤6 m/s FOV: Front and Back 130°, Left and Right 160° Operating Environment Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15) Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15) Video Transmission Video Transmission SystemDJI O3 Enterprise Transmission Live View Quality Remote Controller: 1080p/30fps Operating Frequency 2.400-2.4835 GHz 5.725-5.850 GHz Max Transmission Distance (unobstructed, free of interference) DJI Mavic 3E: FCC: 15 km CE: 8 km SRRC: 8 km MIC: 8 km DJI Mavic 3T: FCC: 15 km CE: 8 km SRRC: 8 km MIC: 8 km Max Transmission Distance (Obstructed) Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC) Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC) Max Download Speed 15 MB/s (with DJI RC Pro Enterprise) Latency (depending on environmental conditions and mobile device) Approx. 200 ms Antenna 4 Antennas, 2T4R Transmission Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), ＜30 dBm (SRRC), <14 dBm (CE) DJI RC Pro Enterprise Video Transmission System DJI O3 Enterprise Transmission Max Transmission Distance (unobstructed, free of interference) FCC: 15 km CE/SRRC/MIC: 8 km Video Transmission Operating Frequency 2.400-2.4835 GHz 5.725-5.850 GHz Antenna 4 Antennas, 2T4R Video Transmission Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC), <14 dBm (CE), ＜23 dBm (SRRC) Wi-Fi Protocol 802.11 a/b/g/n/ac/ax Support 2×2 MIMO Wi-Fi Wi-Fi Operating Frequency 2.400-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz Wi-Fi Transmitter Power (EIRP) 2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC) 5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC), <14 dBm (CE) Bluetooth Protocol Bluetooth 5.1 Bluetooth Operating Frequency 2.400-2.4835 GHz Bluetooth Transmitter Power (EIRP) < 10 dBm Screen Resolution 1920×1080 Screen Size 5.5 inches Screen 60 fps Brightness 1,000 nits Touchscreen Control 10-point multi-touch Battery Li-ion (5000 mAh @ 7.2 V) Charging Type Recommended to be charged with the included DJI USB-C Power Adapter (100W) or USB charger at 12 V or 15 V Rated Power 12 W Storage Capacity Internal Storage (ROM): 64 GB Supports a microSD card for expanded capacity. Charging Time Approx. 1 hour 30 minutes (with the included DJI USB-C Power Adapter (100W) only charging the remote controller or a USB charger at 15 V) Approx. 2 hours (with a USB charger at 12 V) Approx. 2 hours 50 minutes (with the included DJI USB-C Power Adapter (100W) charging the aircraft and remote controller simultaneously) Operating Time Approx. 3 hours Video Output Port Mini-HDMI port Operating Temperature Range -10° to 40° C (14° to 104° F) Storage Temperature -30° to 60° C (-22° to 140° F) (within one month) -30° to 45° C (-22° to 113° F) (one to three months) -30° to 35° C (-22° to 95° F) (three to six months) -30° to 25° C (-22° to 77° F) (more than six months) Charging Temperature 5° to 40° C (41° to 104° F) Supported DJI Aircraft DJI Mavic 3E DJI Mavic 3T GNSS GPS+Galileo+GLONASS Dimensions Antennas folded and controller sticks unmounted: 183.27×137.41×47.6 mm (L×W×H) Antennas unfolded and controller sticks mounted: 183.27×203.35×59.84 mm (L×W×H) Weight Approx. 680 g Model RM510B Storage Supported Memory CardsAircraft: U3/Class10/V30 or above is required. A list of recommended microSD cards can be found below. Recommended microSD Cards Remote Controller: SanDisk Extreme PRO 64GB V30 A2 microSDXC SanDisk High Endurance 64GB V30 microSDXC SanDisk Extreme 128GB V30 A2 microSDXC SanDisk Extreme 256GB V30 A2 microSDXC SanDisk Extreme 512GB V30 A2 microSDXC Lexar 667x 64GB V30 A2 microSDXC Lexar High-Endurance 64GB V30 microSDXC Lexar High-Endurance 128GB V30 microSDXC Lexar 667x 256GB V30 A2 microSDXC Lexar 512GB V30 A2 microSDXC Samsung EVO Plus 64GB V30 microSDXC Samsung EVO Plus 128GB V30 microSDXC Samsung EVO Plus 256GB V30 microSDXC Samsung EVO Plus 512GB V30 microSDXC Kingston Canvas Go! Plus 128GB V30 A2 microSDXC Kingston Canvas React Plus 128GB V90 A1 microSDXC Aircraft: SanDisk Extreme 32GB V30 A1 microSDHC SanDisk Extreme PRO 32GB V30 A1 microSDHC SanDisk Extreme 512GB V30 A2 microSDXC Lexar 1066x 64GB V30 A2 microSDXC Kingston Canvas Go! Plus 64GB V30 A2 microSDXC Kingston Canvas React Plus 64GB V90 A1 microSDXC Kingston Canvas Go! Plus 128GB V30 A2 microSDXC Kingston Canvas React Plus 128GB V90 A1 microSDXC Kingston Canvas React Plus 256GB V90 A2 microSDXC Samsung PRO Plus 256GB V30 A2 microSDXC Battery Capacity5000 mAh Standard Voltage 15.4 V Max Charging Voltage 17.6 V Type LiPo 4S Chemical System LiCoO2 Energy 77 Wh Weight 335.5 g Charging Temperature 5° to 40° C (41° to 104° F) Charger Input100-240 V (AC Power), 50-60 Hz, 2.5 A Output Power 100 W Output Max. 100 W (total) When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power. Charging Hub InputUSB-C: 5-20 V, 5.0 A Output Battery Port: 12-17.6 V, 8.0 A Rated Power 100 W Charging Type Three batteries charged in sequence Charging Temperature Range 5° to 40° C (41° to 104° F) RTK Module Dimensions50.2×40.2×66.2 mm (L×W×H) Weight 24±2 g Interface USB-C Power Approx. 1.2 W RTK Positioning Accuracy RTK Fix: Horizontal: 1 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm Speaker Dimensions114.1×82.0×54.7 mm (L×W×H) Weight 85±2 g Interface USB-C Rated Power 3 W Max Volume 110 dB @ 1 m Effective Broadcast Distance 100 m @ 70 dB Bit Rate 16 Kbps/32 Kbps Operating Temperature Range -10° to 40° C (14° to 104° F)
|
